..The State-of-the-art Diemaking Router…

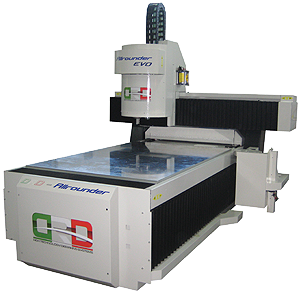

DRD-Allrounder is a new concept of diemaking router, designed and projected to meet the needs of the modern dieshop.
Fully automatic, DRD-Allrounder is the winner card for who wants to get daily unparallel results on:

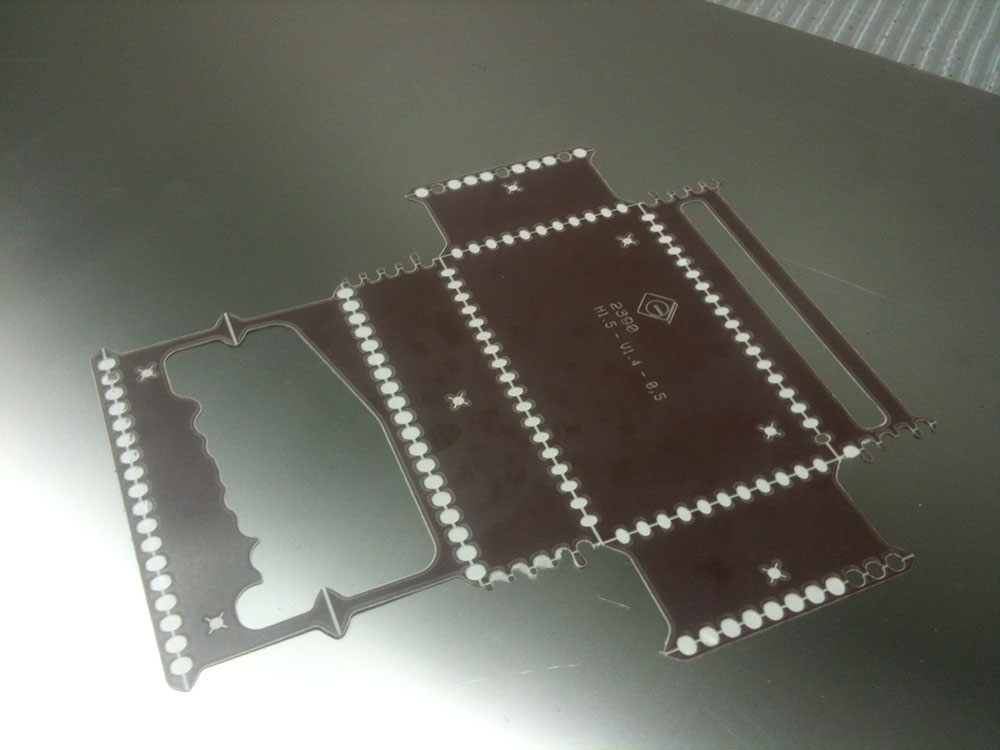

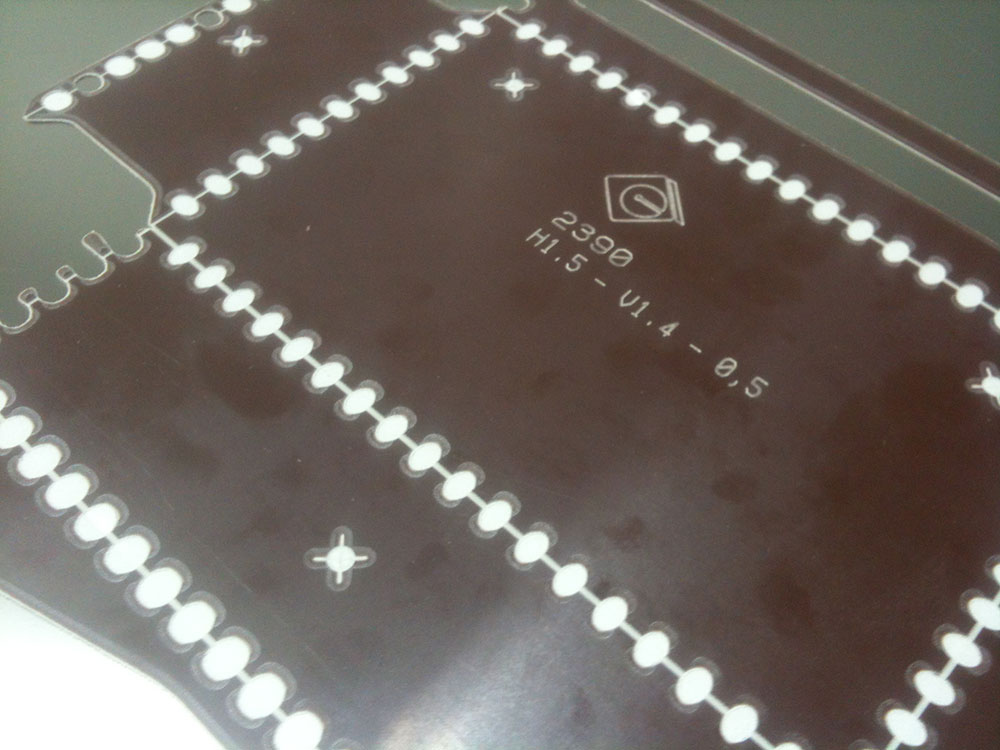

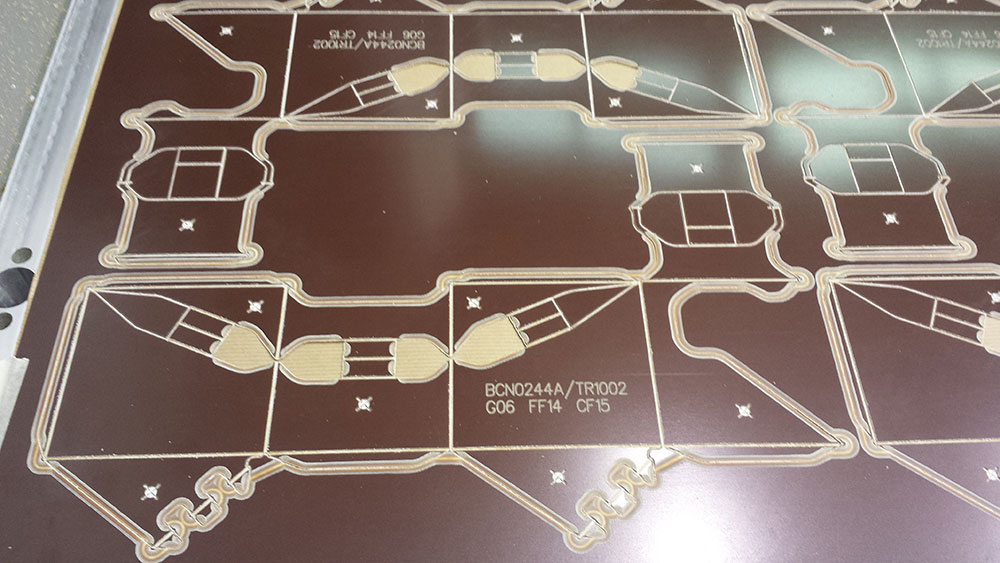

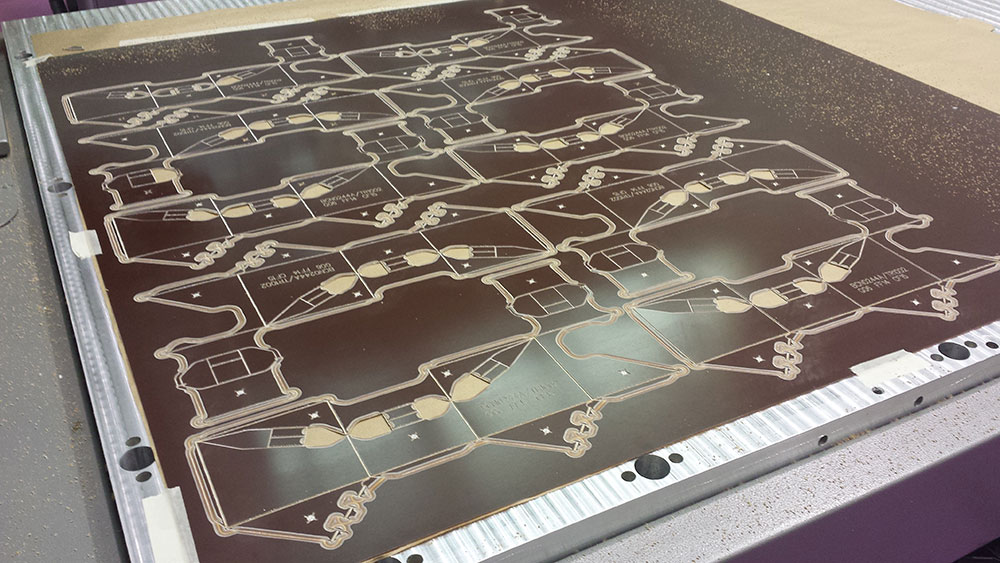

● Pertinax

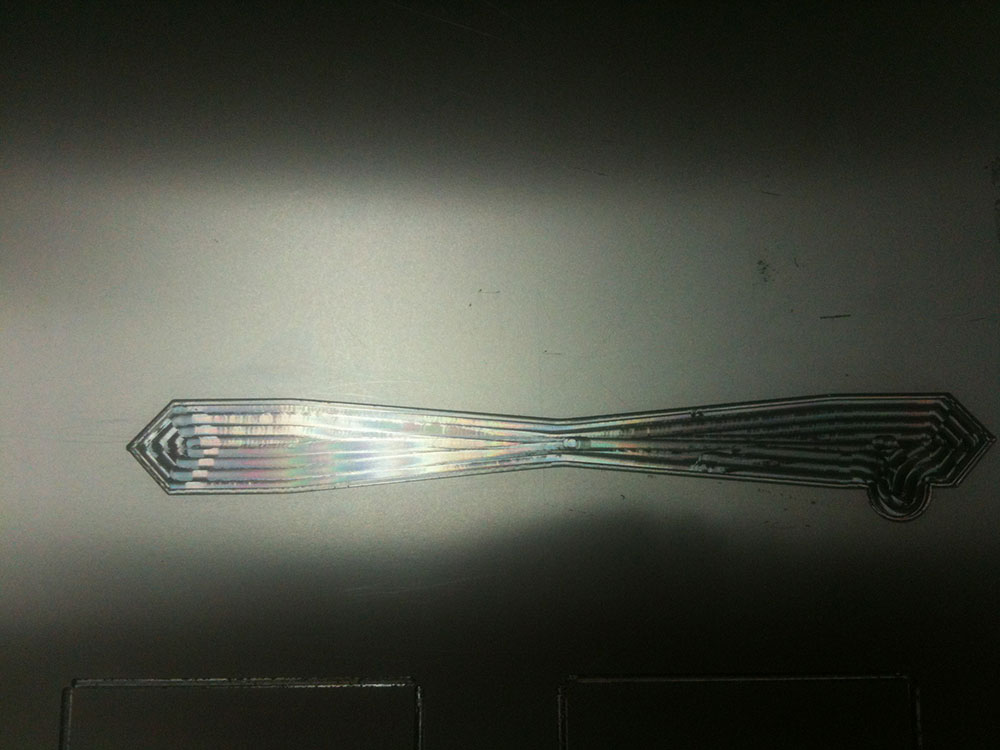

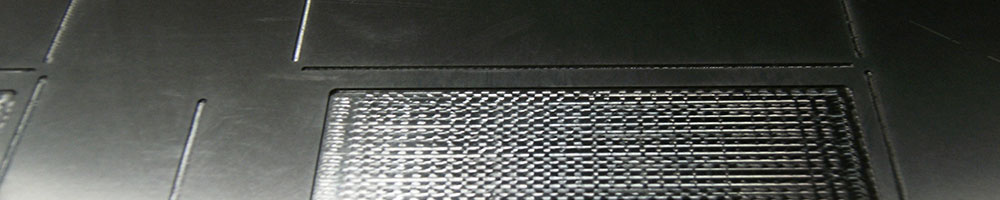

● Steel Counter

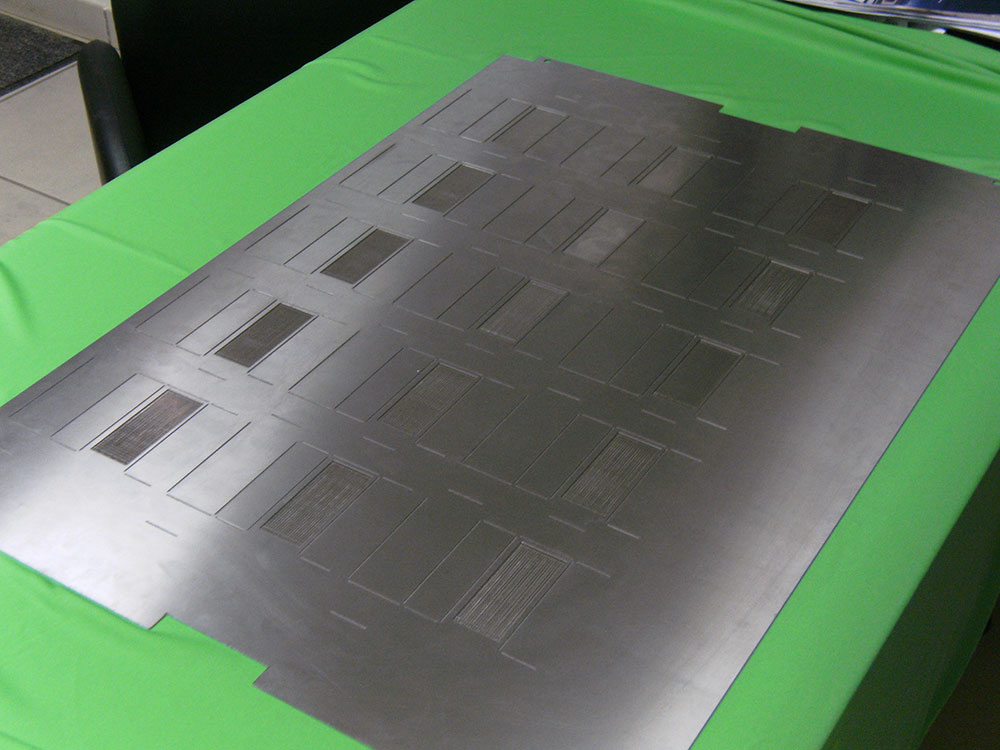

● Stripping Dies

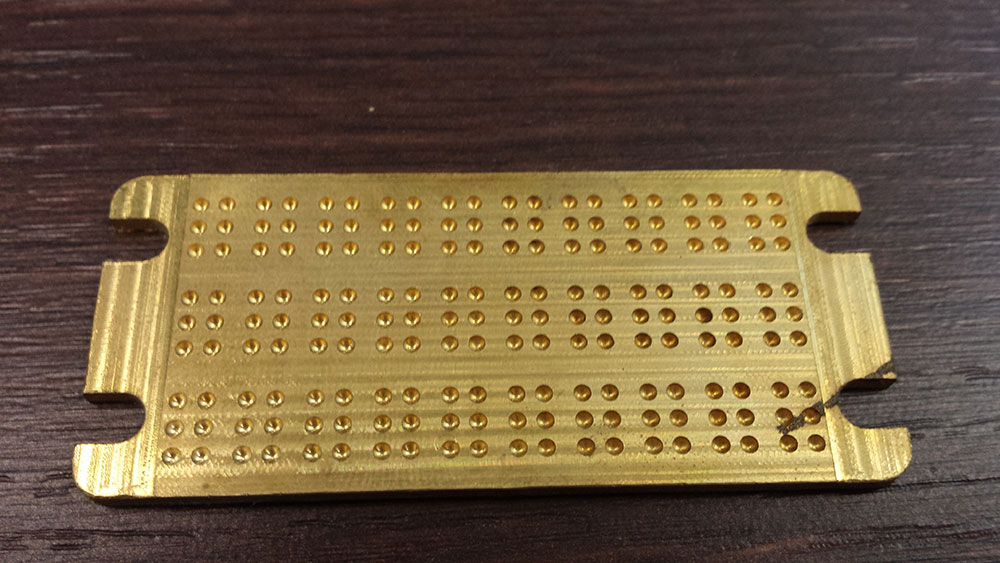

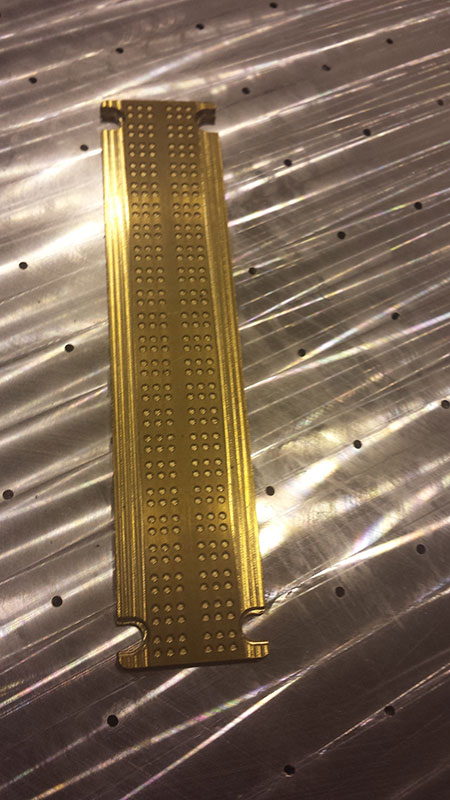

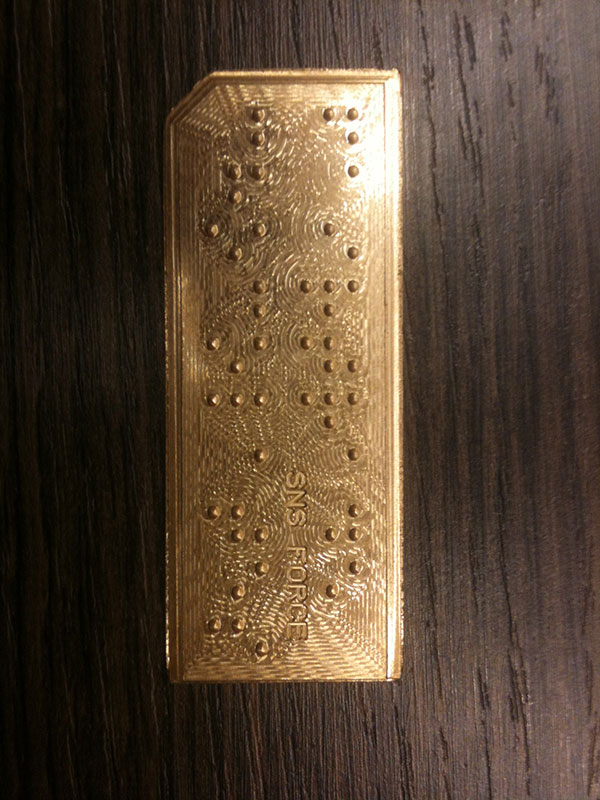

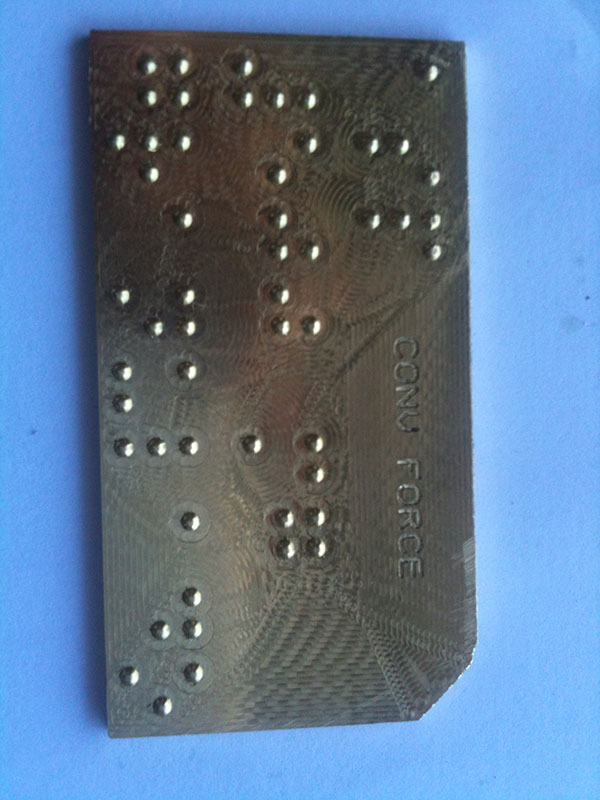

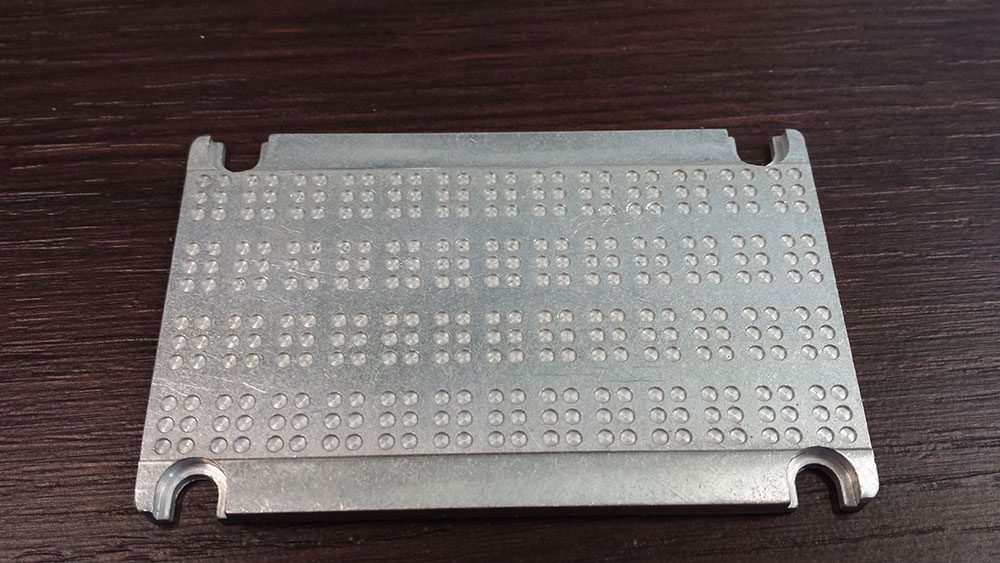

● Milled Braille

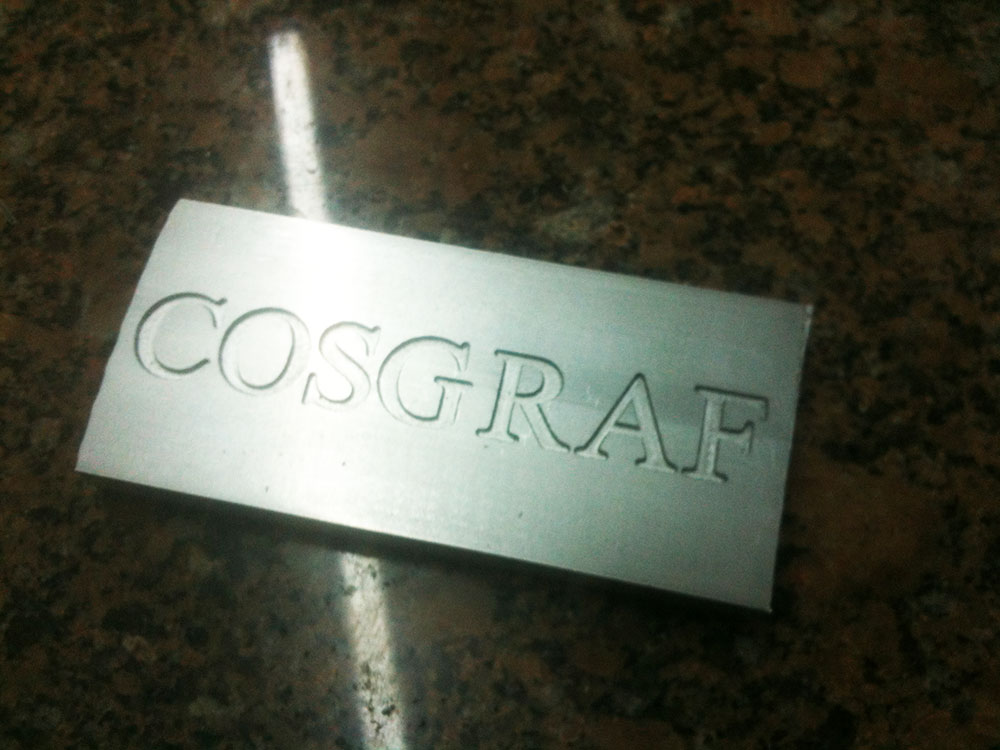

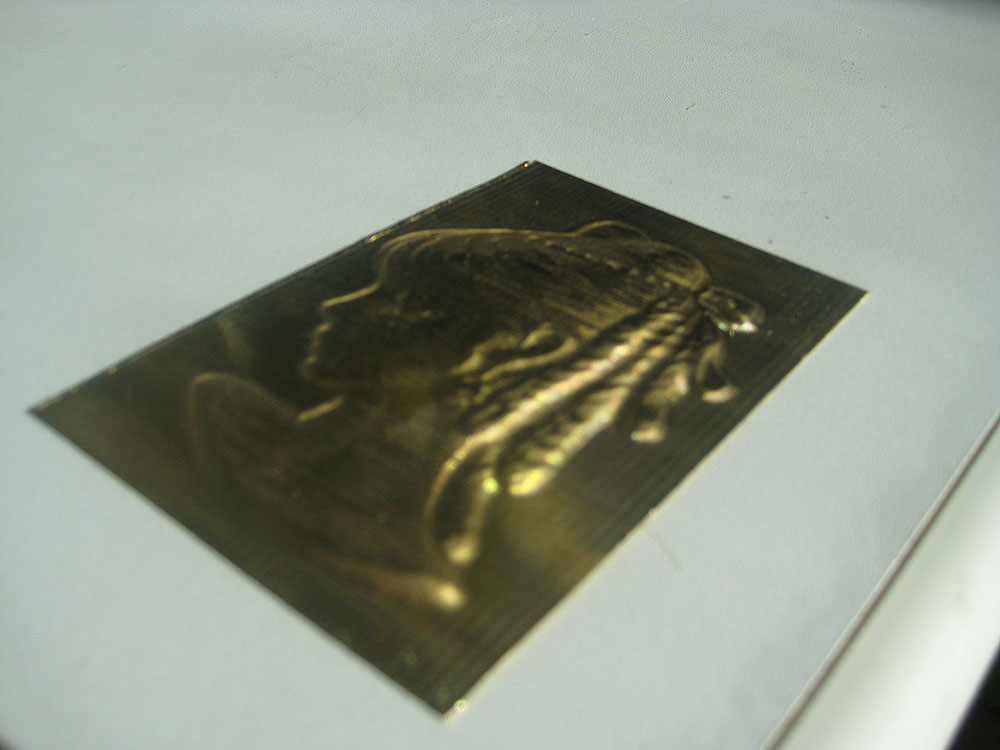

● Small-run Clichès.



Sturdy Frame (over 5.200kg) and complete digital set of motors and drivers make DRD-Allrounder the new diemaking router benchmark.

CONTROLLER

Digital Controller with large Diemaking Material Database

ROUTING HEAD

Routing head with automatic tool change-over
Tool magazine for up to 12 tools
Water cooled, high frequency motor, 3.6 kW spindle power,
Up to 50.000 rev./min.
Automatic change-over and measuring of tools

OPTIONS

(OPMS) Optical Positioning Measure System
PackClichès
Extra Rotary ATC

SPEED

Maximum speed up to 40 m/min.

ROUTING AREA

2000 x 1300 mm

FURTHER FEATURES

User friendly controller interface
Machine fully customizable
